EN‑F180 Facial & Fingerprint Access Control & Time Attendance Terminal
-Model: M62 Specification
EN‑F180 (M62) is a professional biometric access control and time attendance terminal designed for offices, factories, industrial parks, buildings, and public institutions. It integrates dual‑camera facial recognition, optical fingerprint, ID card, and password verification, with large local storage, rich interfaces, and stable network communication. It supports 7×24 reliable operation and is ideal for B2B bulk deployment and system integration.
Key Features
1.Dual Biometric Engine – Facial + fingerprint dual algorithm, ≤1.0s fast recognition
2.5‑in‑1 Verification – Fingerprint, Face, Card, Password, and multi‑mode combination
3.Dual Lens IR Live Detection – Anti‑counterfeit, works day/night with IR fill light
4.Large Capacity – 1000 faces, 1000 fingerprints, 100,000 attendance logs

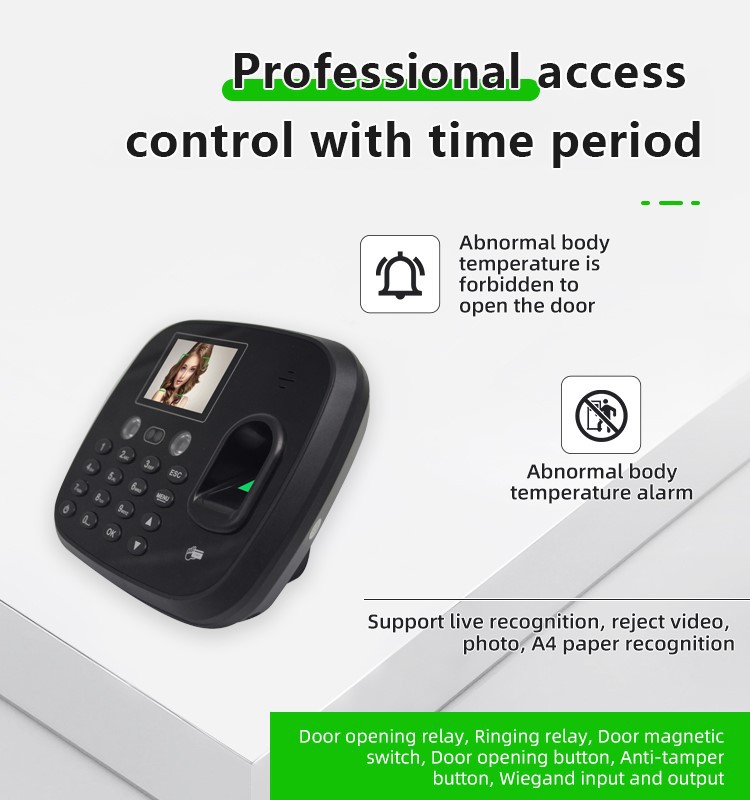

5.Full Access Control Interface – Wiegand 26/34, door contact, relay, anti‑tamper, exit button

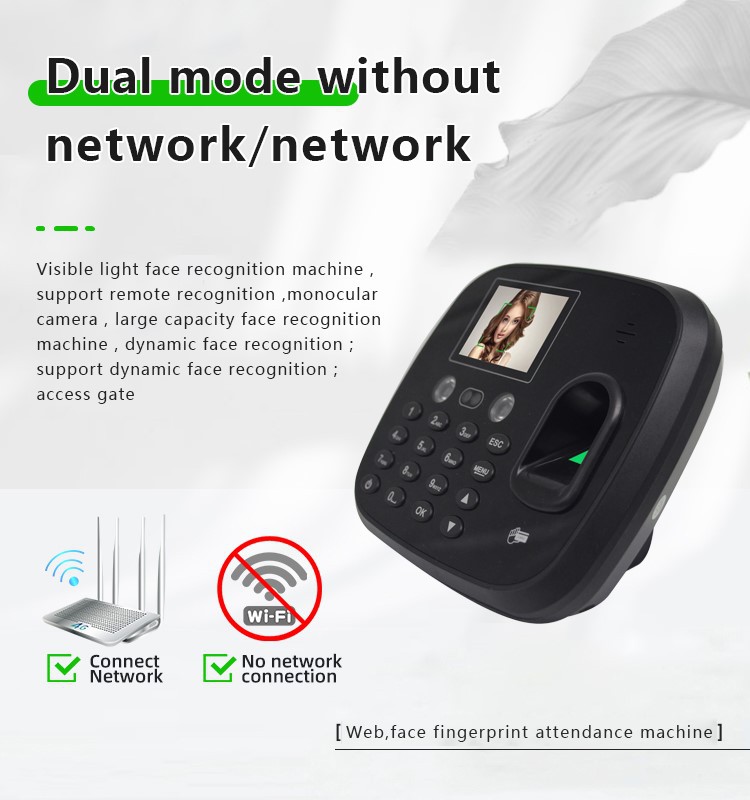

6.Flexible Networking – TCP/IP, optional Wi‑Fi, P2P, WEB management
7.Industrial Reliability – Wide temperature: ‑10°C ~ +60°C, DC 12V, backup battery supported

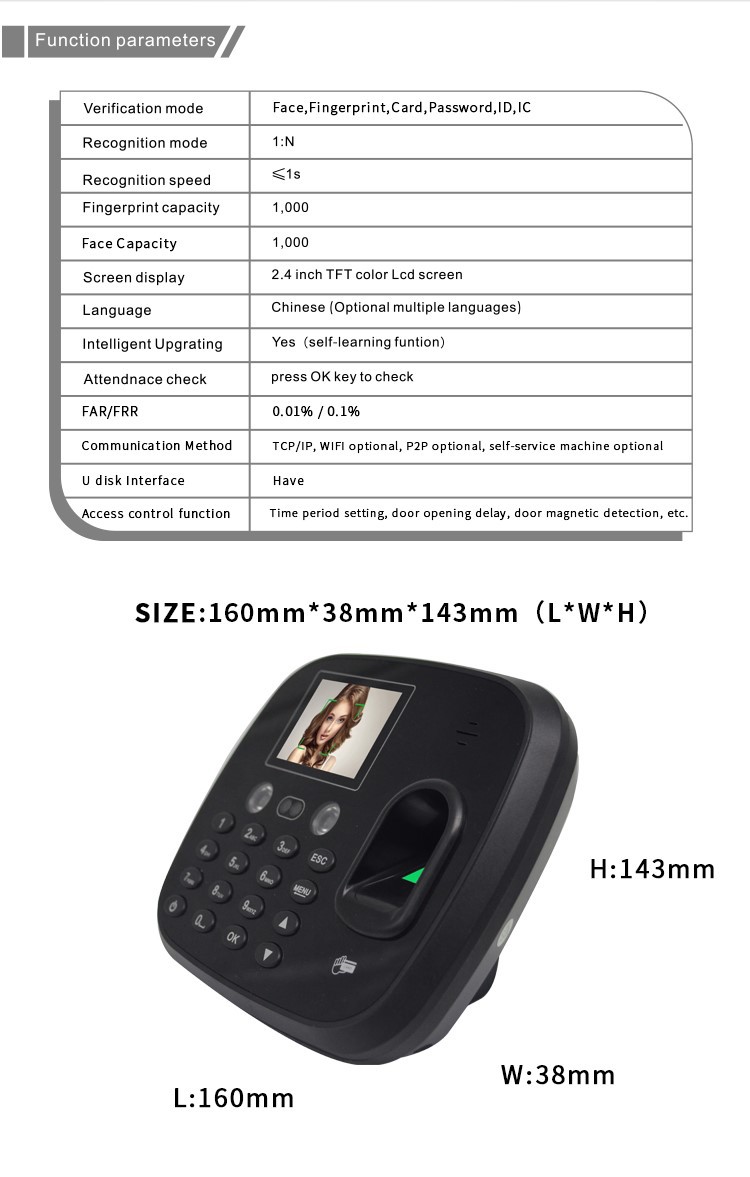

Hardware Specifications
| Item | Details |
|---|---|
| Camera | Dual (Color + Infrared), 2 IR lenses |
| Fingerprint Sensor | Optical sensor |

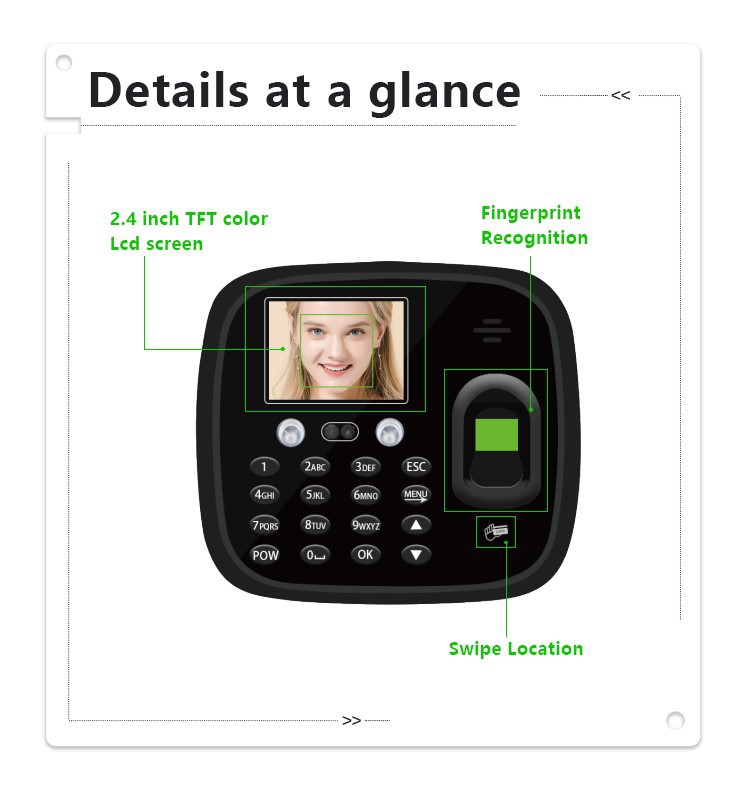

| Display | 2.4‑inch color screen |
| Keyboard | 16 keys |
| LED | Red, Green |
| Card Reader | ID card supported; IC card optional |
| Communication | TCP/IP (Wi‑Fi, P2P, WEB optional) |
| Wiegand | Input & Output: Wiegand 26 / 34 |
| Interfaces | Exit button, door contact, open relay, ring relay, anti‑demolition button |
| I/O | USB, audio output, RTC, backup battery port |
| Power | DC 12V (current <1.5A), backup battery optional |
| POE | No |
| Operating Temp | ‑10°C ~ +60°C |
| Humidity | 20% ~ 80% RH |
Software & Performance

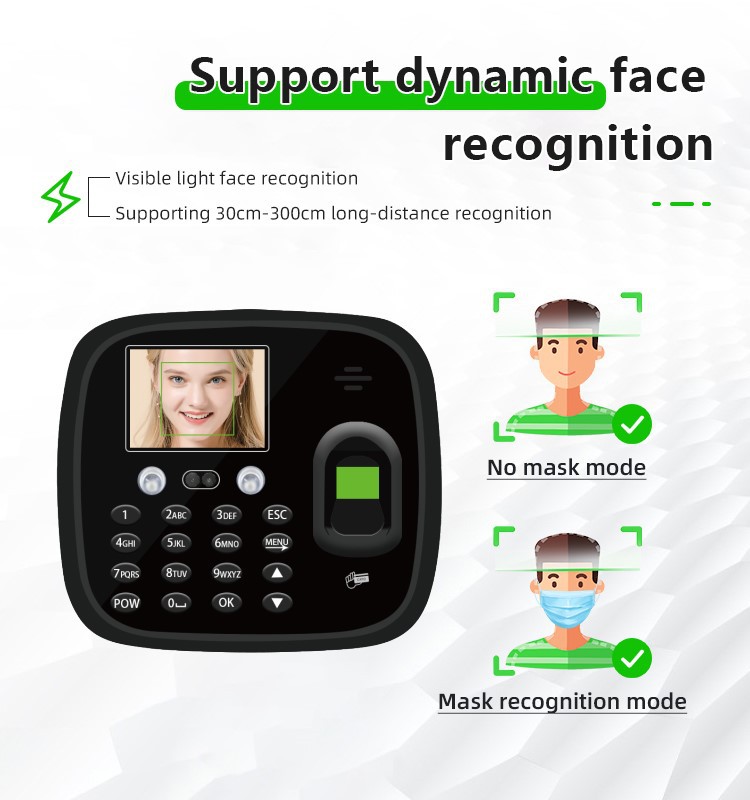

Facial Recognition
Algorithm: Ebknface V3.0
Capacity: 1000 users
Mode: 1:1, 1:N
Speed: ≤1.0s
FAR: 0.001% FRR: 1%
Intelligent update: Supported
Fingerprint Recognition
Algorithm: Ebknfinger V3.0
Capacity: 1000 users
Mode: 1:1, 1:N
Speed: ≤1.0s
FAR: 0.00001% FRR: 0.1%
Intelligent update: Supported
Storage & Management
Attendance Logs: 100000
Management Logs: 3000
Verification: Fingerprint, Face, Card, Password, combination
Access Control: Time zone, gate control, management password, duress alarm (optional)
Functions: Self‑check, sleep power management
Applications & Scenarios
EN‑F180 is widely used in access control and time attendance for commercial, industrial, and public scenarios:
1.Office Buildings & Enterprises – Staff attendance, floor access control, visitor management
2.Factories & Workshops – Shift attendance, workshop access, anti‑unauthorized entry
3.Industrial Parks & Communities – Main gate control, pedestrian access, turnstile integration
4.Government & Public Institutions – Secure area access, official attendance, compliance management
5.Schools & Campuses – Student & staff check‑in, dormitory access control
6.Hospitals & Banks – Restricted area control, high‑security zone verification
7.Hotels & Apartments – Guest room access, staff entrance management
8.Construction Sites & Logistics Parks – Worker attendance, site access control
Why Choose EN‑F180
Stable and mature for mass deployment
Open protocol for easy third‑party integration
Local storage ensures offline operation
High security with multi‑biometric verification
Supports OEM / ODM & technical support
Order & Integration
Model: EN‑F180 (M62)
Package: Terminal, mounting kit, manual, power cable
Support: SDK, communication protocol, technical documents
Bulk orders: Contact us for pricing and lead time
